$2,749.00

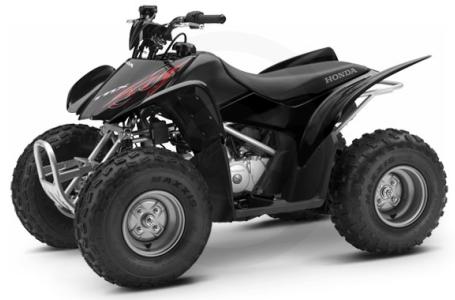

2007 Honda TRX90EX
Request a Quote Financing Calculator Financing Form
Request a Quote Financing Calculator Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Pssst... hey kids, want to know the best way to be like Dad? Ride an ATV just like him. Enter the TRX90EX, with all-new flame graphics (Black model only), sporty TRX450R-inspired styling, reliable four-stroke power, easy electric start, and perhaps best of all, legendary Honda reliability and build quality. The TRX90EX is so cool, in fact, that we'll bet your Dad will be wishing he'd had one when he was your age.

    ENGINE
    • Engine Type: 86cc air-cooled SOHC single-cylinder four-stroke
    • Bore and Stroke: 47.0mm x 49.5mm
    • Carburetion: 15mm piston-valve
    • Ignition: CDI
    • Starter: Electric
    DRIVE TRAIN
    • Clutch: Automatic
    • Transmission: Four-speed
    • Driveline: O-ring-sealed chain
    CHASSIS / SUSPENSION / BRAKES
    • Front Suspension: Independent suspension; 2.6-inch (65mm) travel
    • Rear Suspension: Swingarm with single shock; 2.6-inch (65mm) travel
    • Front Brakes: Dual sealed drum
    • Rear Brake: Sealed drum
    • Front Tires: 20 x 7-8
    • Rear Tires: 19 x 8-8
    DIMENSIONS
    • Length: 58.6 inches (1,489mm)
    • Width: 35.2 inches (895mm)
    • Height: 36.5 inches (927mm)
    • Wheelbase: 38.7 inches (985mm)
    • Seat Height: 26.0 inches (660mm)
    • Ground Clearance: 3.9 inches (99mm)
    • Turning Radius: 8.3 feet
    • Dry Weight: 251.0 pounds (114kg)
    • Fuel Capacity: 2.0 gallons, including 0.3-gallon reserve (7.5 l, including reserve)
    OTHER
    • Available Colors: Red, Black/Flame
    • Model ID: TRX90EX
    FACTORY WARRANTY INFORMATION
    • 6 months: Transferable, limited warranty; extended coverage available with a Honda Protection Plan
    NOTES:

    Recommended for riders 16 years of age and older. Honda recommends that all ATV riders take a training course and read their owner's manual thoroughly.


    Specifications

    Engine
    Engine Type 2-stroke SOHC
    Displacement 86cc
    Bore x Stroke 47.0 mm x 49.5 mm
    Cylinders 1
    Engine Cooling Air-cooled
    Fuel System 15mm piston-valve
    Starting System CDI, Electric
    Chassis
    Front Suspension Independent suspension
    Front Travel 2.6"
    Front Brake Type Dual sealed drum
    Front Tires 20 x 7-8
    Rear Travel 2.6"
    Rear Suspension Swingarm with single shock
    Rear Brake Type Sealed drum
    Rear Tires 19 x 8-8
    Dimensions/Capacities
    Dry Weight 251 lbs. (114kg)
    Fuel Capacity 2.0 gal., including 0.3-gal. reserve (7.5 l, including reserve)
    Ground Clearance 3.9 in. (99mm)
    Machine Dimensions (LxWxH) 58.6" (1,489mm) x 35.2" (895mm) x 63.5" (1613mm)
    Wheelbase 38.7 in. (985mm)
    Drive Train
    Drive Train O-ring-sealed chain
    Transmission Four-speed
    General
    Colors Red, Black/Flame
    Warranty 6 months, Transferable, limited warranty; extended coverage available with a Honda Protection Plan

    Compare Models

    		 Print








    Year 2007
    Manufacturer Honda
    Model TRX90EX
    Style Youth
    MSRP* $2,749.00
    Chassis
    Front Suspension Independent suspension
    Front Travel 2.6"
    Front Brake Type Dual sealed drum
    Front Tires 20 x 7-8
    Rear Suspension Swingarm with single shock
    Rear Travel 2.6"
    Rear Brake Type Sealed drum
    Rear Tires 19 x 8-8
    Frame
    Dimensions/Capacities
    Dry Weight 251 lbs. (114kg)
    Front Rack Capacity
    Rear Rack Capacity
    Towing Capacity
    Fuel Capacity 2.0 gal., including 0.3-gal. reserve (7.5 l, including reserve)
    Ground Clearance 3.9 in. (99mm)
    Machine Dimensions (LxWxH) 58.6" (1,489mm) x 35.2" (895mm) x 63.5" (1613mm)
    Wheelbase 38.7 in. (985mm)
    Drive Train
    Drive Train O-ring-sealed chain
    Final Drive
    Transmission Four-speed
    Engine
    Engine Type 2-stroke SOHC
    Displacement 86cc
    Bore x Stroke 47.0 mm x 49.5 mm
    Cylinders 1
    Engine Cooling Air-cooled
    Fuel System 15mm piston-valve
    Starting System CDI, Electric
    Alternator
    General
    Speedometer
    Tachometer
    Odometer
    Lighting
    Colors Red, Black/Flame
    Warranty 6 months, Transferable, limited warranty; extended coverage available with a Honda Protection Plan

    Current Promotions

    There are currently no promotions available for this product.
