New Units » Polaris Industries » Trail Boss 330
Model Quick Search

$3,899.00

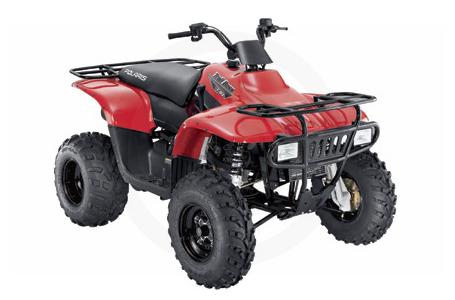

2007 Polaris Industries Trail Boss 330
Request a Quote Financing Calculator Financing Form
Request a Quote Financing Calculator Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • Powerful air-cooled engine w/ fan assist, oil cooler, carbureted, single-cylinder Polaris 330 engine
  • Industry-leading Polaris Variable Transmission
  • Reliable Concentric Drive System
  • Long-travel rear suspension (9"/22.9 cm)
  • Single-lever braking system
  • Mechanical fuel gauge
  • MacPherson front suspension (6.7"/17 cm)
  • Full floorboards
  • Colors: Red
Engine
  • Engine Type: 4-stroke
  • Displacement: 329 cc
  • Carburetion: 34 mm CV Mikuni
  • Cooling: Air with fan assist oil cooler
  • Starting: Electric with recoil backup
Drivetrain
  • Final Drive: Concentric Chain
  • Transmission: F/N/R
  • Drive System: Automatic PVT
  • EBS (Engine Braking System): Accessory
Suspension
  • Front Suspension: MacPherson strut with 6.7in / 20.8cm travel
  • Rear Suspension: Progressive rate swing arm with 9in / 22.9cm travel
Brakes
  • Front/Rear Brakes: Single-lever hydraulic disc w/ hydraulic rear foot brake
Tires/Wheels
  • Front Tires: 23 x 7-10
  • Rear Tires: 22 x 11-10
  • Wheels: Steel
Dimensions/Capacities
  • Wheelbase: 49.5/125.7 in/cm
  • Turning Radius (inside tire): 75/190.5 in/cm
  • Dry Weight: 505/229.1 lbs/kg
  • Length/Width/Height: 75/46/46, 190.5/116.8/116.8 in/cm
  • Seat Height: 34/86.4 in/cm
  • Fuel Capacity: 3.25/12.3 U.S. gallons/L
  • Front-Rack Capacity*: 75/34 lbs/kg
  • Rear-Rack Capacity*: 125/56.7 lbs/kg
  • Hitch: Std / Drawbar
  • Hitch Towing Capacity*: 850/385.6 lbs/kg
  • Hitch Tongue Weight*: 85/38.6 lbs/kg
  • Ground Clearance: 5.5/13.9 in/cm
Instrumentation/Features
  • Gauge Type: Intrument Panel
  • Speedometer/Odometer: Accessory
  • Tripmeter: Accessory
  • Hourmeter: Accessory
  • High-Beam Indicator: Standard
  • Gear Indicator: N/R Light
  • Fuel Gauge: Mechanical
  • Warning Lights: Hi Temp
  • DC Outlet: Accessory
Colors
  • Colors: Red/Black

Specifications

Engine
Engine Type 4-stroke
Displacement 329 cc
Cylinders 1
Engine Cooling Air with fan assist oil cooler
Fuel System 34 mm CV Mikuni
Starting System Electric with recoil backup
Chassis
Front Suspension MacPherson strut
Front Travel 6.7 in. / 20.8 cm
Front Brake Type Single-lever hydraulic disc
Front Tires 23 x 7-10
Rear Suspension Progressive rate swing arm
Rear Travel 9 in. / 22.9 cm
Rear Brake Type Hydraulic rear foot brake
Rear Tires 22 x 11-10
Dimensions/Capacities
Dry Weight 505 lbs. / 229.1 kg
Front Rack Capacity 75 lbs. / 34 kg
Rear Rack Capacity 125 lbs. / 56.7 kg
Towing Capacity 850 lbs. / 385.6 kg
Fuel Capacity 3.25 gal. / 12.3 l
Ground Clearance 5.5 in. / 13.9 cm
Machine Dimensions (LxWxH) 75" x 46" x 46" / 190.5 x 116.8 x 116.8 cm
Wheelbase 49.5 in. / 125.7 cm
Drive Train
Drive Train Automatic PVT
Final Drive Concentric Chain
Transmission F/N/R
General
Colors Red/Black

Compare Models

 Print








Year 2007
Manufacturer Polaris Industries
Model Trail Boss 330
Style Utility
MSRP* $3,899.00
Chassis
Front Suspension MacPherson strut
Front Travel 6.7 in. / 20.8 cm
Front Brake Type Single-lever hydraulic disc
Front Tires 23 x 7-10
Rear Suspension Progressive rate swing arm
Rear Travel 9 in. / 22.9 cm
Rear Brake Type Hydraulic rear foot brake
Rear Tires 22 x 11-10
Frame
Dimensions/Capacities
Dry Weight 505 lbs. / 229.1 kg
Front Rack Capacity 75 lbs. / 34 kg
Rear Rack Capacity 125 lbs. / 56.7 kg
Towing Capacity 850 lbs. / 385.6 kg
Fuel Capacity 3.25 gal. / 12.3 l
Ground Clearance 5.5 in. / 13.9 cm
Machine Dimensions (LxWxH) 75" x 46" x 46" / 190.5 x 116.8 x 116.8 cm
Wheelbase 49.5 in. / 125.7 cm
Drive Train
Drive Train Automatic PVT
Final Drive Concentric Chain
Transmission F/N/R
Engine
Engine Type 4-stroke
Displacement 329 cc
Bore x Stroke
Cylinders 1
Engine Cooling Air with fan assist oil cooler
Fuel System 34 mm CV Mikuni
Starting System Electric with recoil backup
Alternator
General
Speedometer
Tachometer
Odometer
Lighting
Colors Red/Black
Warranty

Current Promotions

There are currently no promotions available for this product.
