New Units » Suzuki » QuadSport® Z400™
Model Quick Search

$5,999.00

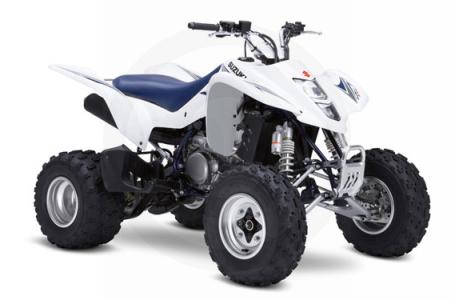

2008 Suzuki QuadSport® Z400™
Request a Quote Financing Calculator Financing Form
Request a Quote Financing Calculator Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

One ride on a QuadSport Z400 and you'll understand what heart-pounding performance is all about. The QuadSport Z400 is engineered to be the best all-around sport machine for any terrain - from woods to sand to the track. Boasting industry-leading technology, the QuadSport Z400 sets the standard for high-performance sport four-wheelers.


Go ahead - take aim and turn it loose. The QuadSport Z400's hard-hitting and high-revving powerplant lets you blast out of corners and rewards you with awesome acceleration on the straight-aways. And talk about maneuverability! Its lightweight design makes it incredibly agile, while its state-of-the-art chassis and long-travel suspension smooth out the gnarliest terrain.


The 2008 QuadSport Z400 - pure sport performance!

    Key Features
    • The Suzuki QuadSport Z400 is engineered for high-performance off-road four-wheeling by experienced riders
    • Aggressive-styled mid-size sport ATV featuring a dependable 4-stroke engine and lightweight chassis design with adjustable long-travel suspension
    Engine Features
    • Compact & lightweight 398cc 4-stroke, single-cylinder, liquid-cooled engine with counter- balancer tuned for tractable power over a wide rpm range
    • Cylinder head features large 36mm intake and 29mm exhaust valves, plus a narrow 28º included valve angle creating a more compact combustion chamber, with high compression ratio and a straight intake tract for improved torque. Cams are direct acting-type with shim-under-bucket valve adjustment
    • Forged aluminum alloy piston and SCEM-plated aluminum cylinder are lightweight and durable. SCEM plating reduces cylinder weight (no iron sleeve) and improves cooling efficiency
    • Large 37mm carburetor with throttle position sensor - ignition timing is determined by throttle opening for improved engine response, especially at high rpm
    • Liquid-cooling system with high-capacity radiator and thermostatically-controlled cooling fan provides consistent engine operating temperature
    • Dry-sump lubrication system allows a compact crankcase and minimal engine height for optimum engine placement - oil tank is frame-mounted in front of the exhaust head pipes
    • Five-speed transmission with cable-operated clutch includes an easy-to-use reverse gear system - just turn the fender-mounted knob and shift from neutral to reverse using the gear shift lever
    • Aluminum gear shift lever for lighter gearshift feel and reduced weight
    • Convenient electric start system includes Start-In-Gear feature - electric start system and CDI ignition are powered by compact maintenance-free battery
    • Magnesium valve cover and ignition cover for improved engine appearance and reduced weight
    Chassis Features
    • Aggressive-styled bodywork with high fenders and air intake vents to enhance sport style and improve airflow to radiator - large T-shaped seat provides high comfort and maneuverability
    • Dual 30/30W, vertically-mounted halogen headlights provide a bold look and bright illumination - large 5/21W taillight/brake light combination is standard
    • Lightweight, high tensile steel-alloy frame and removable steel sub-frame, plus aluminum swingarm
    • Long-travel, independent double A-arm front suspension with fully-adjustable, piggyback reservoir-style shock absorbers - provides 8.5 inches of wheel travel for a comfortable ride over all types of terrain
    • Linkage-type rear suspension features fully adjustable, piggyback reservoir-style shock absorber with 9.1 inches of wheel travel, plus 8.5 inches of ground clearance
    • Large 6.9 inch dual front disc brakes and single 8.6 inch rear disc brake
    • Lightweight aluminum alloy wheels (F: 10.0 x 5.5, R: 9.0 x 8.0), and radial tires (F: 22 x 7-10, R: 20x10-9), for reduced unsprung weight
    • Aluminum front bumper and aluminum rear grab bar for improved appearance and reduced weight
    • Heavy-duty front bumper and high-impact resistant polyethylene skid plate
    • Wide serrated-type footpegs for high grip and comfort
    • Large 2.6-gallon fuel tank with two mounting points for quick removal and simplified maintenance
    Specifications
    • Engine: 398cc, 4-stroke, single cylinder, liquid-cooled, DOHC, 4-valve, TSCC
    • Bore Stroke: 90.0 x 62.6mm
    • Compression Ratio: 11.3:1
    • Fuel System: Mikuni BSR36
    • Lubrication: Dry sump
    • Ignition: Digital/transistorized
    • Transmission: 5-speed, with reverse
    • Final Drive: # 520 chain
    • Overall Length: 1830mm (72.0 in.)
    • Overall Width: 1165mm (45.9 in.)
    • Overall Height: 1160mm (45.7 in.)
    • Seat Height: 810mm (31.9 in.)
    • Ground Clearance: 265mm (10.4 in.)
    • Wheelbase: 1245mm (49.0 in.)
    • Dry Weight: 169kg (372 lbs.)
    • Suspension Front: Independent, double A-arm, fully adjustable preload, compression & rebound damping, 8.5 inches of travel
    • Suspension Rear: Linkage-type, gas/oil damped, fully adjustable spring preload, adjustable compression and rebound damping, 9.1 inches of travel
    • Brakes Front: Dual hydraulic discs
    • Brakes Rear: Single hydraulic disc
    • Tires Front: AT 22 x 7-10
    • Tires Rear: AT 20 x 10-9
    • Fuel Tank Capacity: 10 liters (2.6 gal.)
    • Color: Yellow, White
    NOTES:

    Minimum Age: 16 Years Old.


    Specifications and features are subject to change.


    Specifications

    Engine
    Engine Type 4-Stroke, DOHC, 4-Valve, TSCC
    Displacement 398 cc
    Bore x Stroke 90.0 x 62.6 mm
    Cylinders Single
    Engine Cooling Liquid-cooled
    Fuel System Mikuni BSR36
    Starting System Ignition: Digital/transistorized; Electric start
    Chassis
    Front Suspension Independent, double A-arm, fully adjustable preload, compression & rebound damping
    Front Travel 8.5 in.
    Front Brake Type Dual hydraulic discs
    Front Tires AT 22 x 7-10
    Rear Suspension Linkage-type, gas/oil damped, fully adjustable spring preload, adjustable compression and rebound damping
    Rear Travel 9.1 in.
    Rear Brake Type Single hydraulic disc
    Rear Tires AT 20 x 10-9
    Frame Lightweight, high tensile steel-alloy frame and removable steel sub-frame
    Dimensions/Capacities
    Dry Weight 372 lbs (169 kg)
    Fuel Capacity 2.6 gal (10 l)
    Ground Clearance 10.4 in. (26 5mm)
    Machine Dimensions (LxWxH) 72 x 45.9 x 45.7 in. (1830 x 1165 x 1160 mm)
    Wheelbase 49.0 in. (124 5mm)
    Drive Train
    Final Drive # 520 chain
    Transmission 5-speed, with reverse
    General
    Lighting Dual 30/30W, vertically-mounted halogen headlights - large 5/21W taillight/brake light
    Colors Yellow, White
    Warranty 6 month limited warranty

    Compare Models

    		 Print








    Year 2008
    Manufacturer Suzuki
    Model QuadSport® Z400™
    Style Sport
    MSRP* $5,999.00
    Chassis
    Front Suspension Independent, double A-arm, fully adjustable preload, compression & rebound damping
    Front Travel 8.5 in.
    Front Brake Type Dual hydraulic discs
    Front Tires AT 22 x 7-10
    Rear Suspension Linkage-type, gas/oil damped, fully adjustable spring preload, adjustable compression and rebound damping
    Rear Travel 9.1 in.
    Rear Brake Type Single hydraulic disc
    Rear Tires AT 20 x 10-9
    Frame Lightweight, high tensile steel-alloy frame and removable steel sub-frame
    Dimensions/Capacities
    Dry Weight 372 lbs (169 kg)
    Front Rack Capacity
    Rear Rack Capacity
    Towing Capacity
    Fuel Capacity 2.6 gal (10 l)
    Ground Clearance 10.4 in. (26 5mm)
    Machine Dimensions (LxWxH) 72 x 45.9 x 45.7 in. (1830 x 1165 x 1160 mm)
    Wheelbase 49.0 in. (124 5mm)
    Drive Train
    Drive Train
    Final Drive # 520 chain
    Transmission 5-speed, with reverse
    Engine
    Engine Type 4-Stroke, DOHC, 4-Valve, TSCC
    Displacement 398 cc
    Bore x Stroke 90.0 x 62.6 mm
    Cylinders Single
    Engine Cooling Liquid-cooled
    Fuel System Mikuni BSR36
    Starting System Ignition: Digital/transistorized; Electric start
    Alternator
    General
    Speedometer
    Tachometer
    Odometer
    Lighting Dual 30/30W, vertically-mounted halogen headlights - large 5/21W taillight/brake light
    Colors Yellow, White
    Warranty 6 month limited warranty
